Reliable CT scanner providing high-end images
Fujifilm Supria 16 / 32 Slice CT
The Fujifilm SUPRIA 32 Slice is a reliable CT scanner providing high-end images across a wide range of applications. Offering excellent workflow speed and clear CT image quality across a wide range of applications, the SUPRIA 32 uses 32 slice acquisition and up to 32 slice reconstruction and is designed keeping the patient in mind. Patients of all body shapes and sizes can be accommodated thanks to the large aperture, long table and high weight capacity of this CT Scanner. The larger 75cm gantry aperture, wide 47.5cm table and long 180cm scannable range create the perfect patient environment during a scan. The latest Fujifilm dose reduction technologies surpass the XR-29 Smart dose standard.
- 32 Slice CT Scanner
- Low scan time of just 0.8 seconds for whole body scan
- Wide bore gantry aperture of 75cm
- CORETM 3D Cone beam reconstruction technique for artifact-free images

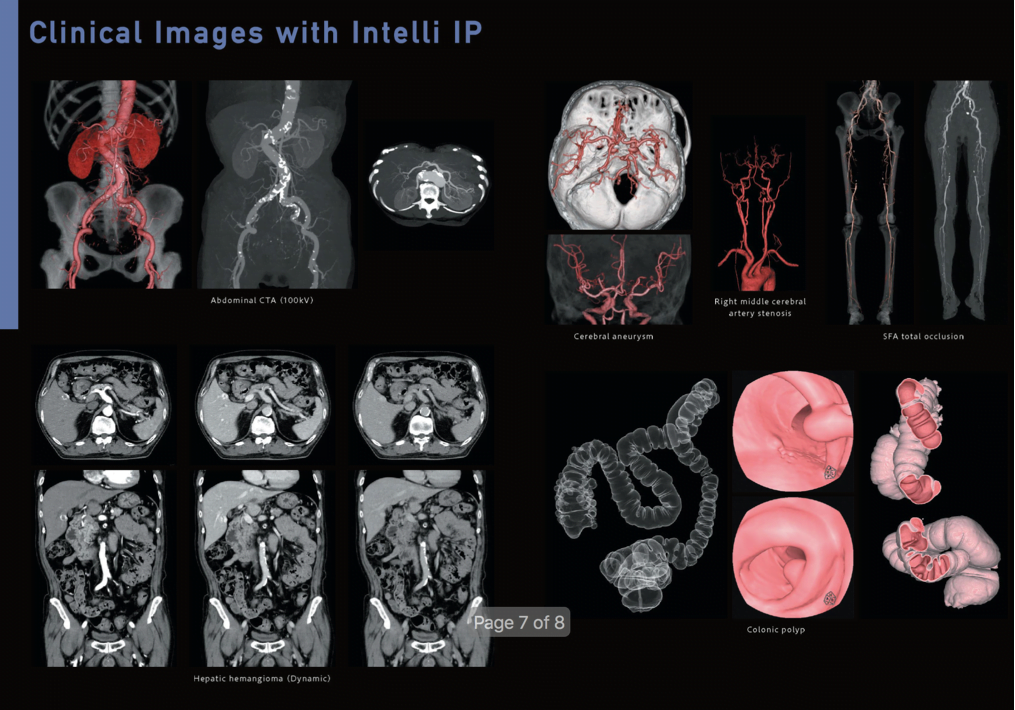

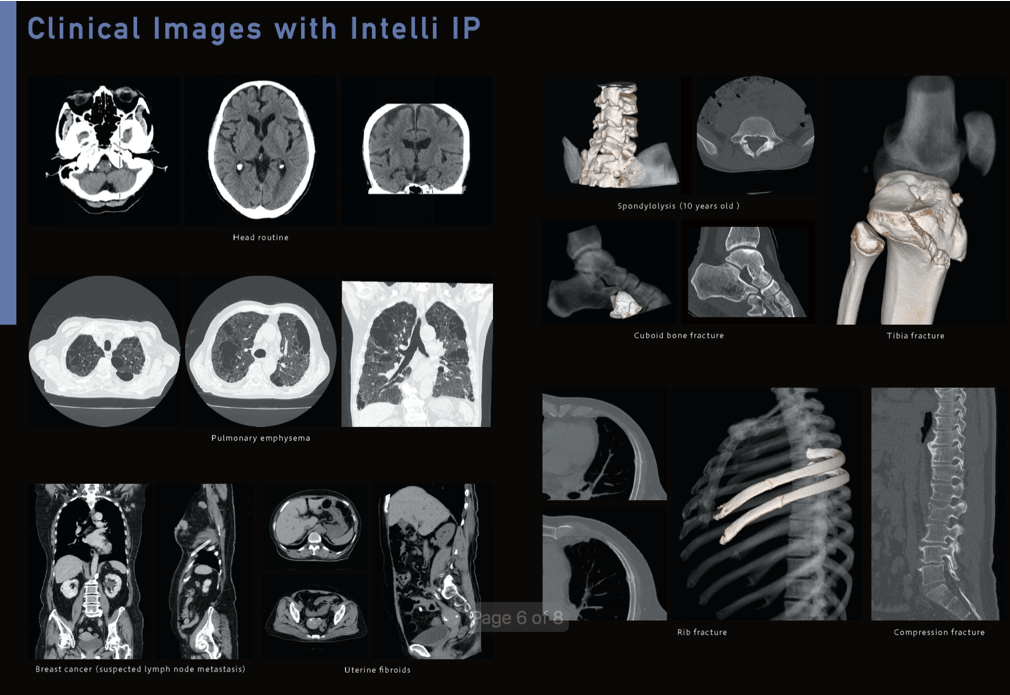

- Dose reduction protocols like Automatic Exposure Control (Intelli EC) and Iterative Processing (Intelli IP advanced)
- Automatic patient positioning (head mode and body mode)
- Breath demo light for patient preparation
- Touch vision panel system, allowing scan guidance in 10 languages as well as paediatric assistance
- Straightforward patient registration and easy system handling
- Integrated image viewing station
- Range of applications available, including CT Subtraction (CT DSA), CT Perfusion (Brain & Body), CT Lung Analysis, CT Liver Analysis, CT Colonoscopy, Dental CT, Virtual Endoscopy (Optional)
- Predict scan to trigger contrast agent
- Interventional procedure package Guide Shot for CT Fluoroscopy (Optional)

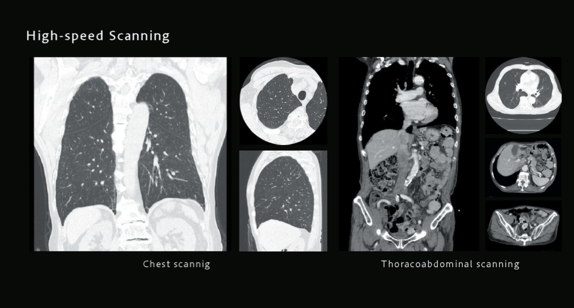

- Whole body high speed scanning with less than 1 sec/rot
- 75 cm wide gantry bore with compact foot-print
- Effective field of view: 500mm
- X-ray tube: 2/5 MHU
- Maximum output: 24/48 kw
